Single pendulum handheld welding gun

Handheld Welding Head Handheld Welding Head

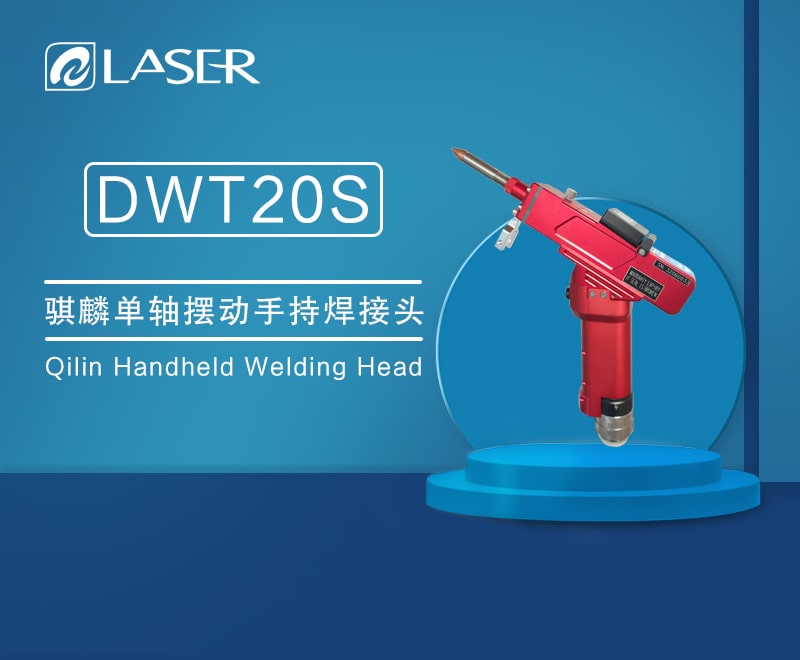

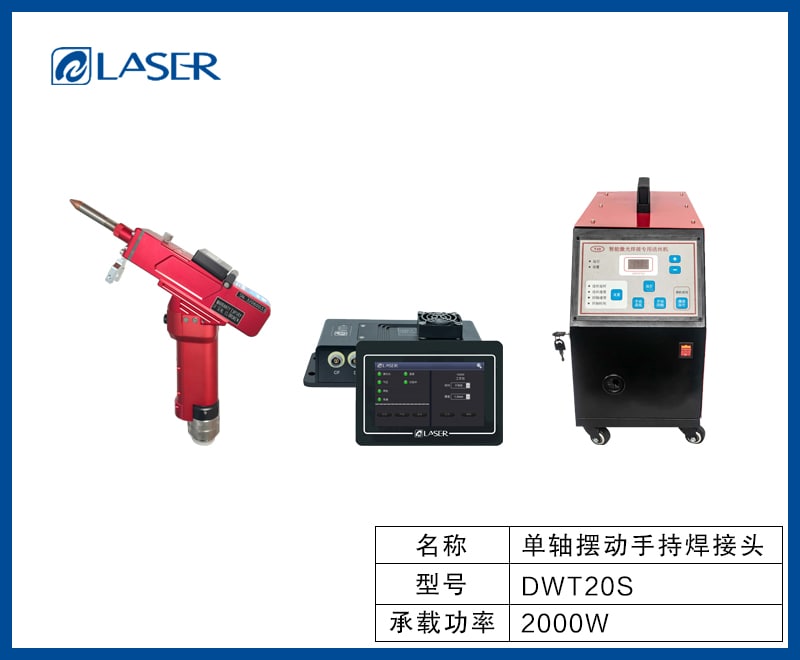

Handheld Welding Head

Name:Handheld Welding Head
Model:DWT20S

●Pulling-out type drawer for double protective lens and focus lens,easy to be replaced
●Scientific cooling system, compatible with water cooling and air cooling
●Up to 26 languages can be chosen
●Data storage, welding datas can be storaged and called
●The laser power is optional and automatically matched to the process package
●Strong anti-interference ability, safe and stable
●Ergonomic design,light and flexible
●The gun comes with a small screen for easy observation and adjustment

Product introduction

●Pulling-out type drawer for double protective lens and focus lens,easy to be replaced

●Scientific cooling system, compatible with water cooling and air cooling

●Up to 26 languages can be chosen

●Data storage, welding datas can be storaged and called

●The laser power is optional and automatically matched to the process package

●Strong anti-interference ability, safe and stable

●Ergonomic design,light and flexible

●The gun comes with a small screen for easy observation and adjustment

Technical parameter

接口类型(Interface):QBH/RD

通光孔径 (Optical Aperture):11mm

承载功率(Power):2000W

摆动幅度(Wave Range):0--5mm

准直焦距(Collimating Length):50mm

摆动频率 (Wave Frequency):0-30HZ Adjustable

聚焦焦距(Focusing Length):150

整体重量(Weight):0.75KG

摆动模式(Wave Mode):
